Back in
Part
1, we introduced the basics and started building the electronics.
In
Part
2, we finished up the controller and started building our machine.
Today we complete our unholy marriage of cutting boards and dot matrix
printers in Part 3 of How-To: Build your own CNC machine. Good luck.

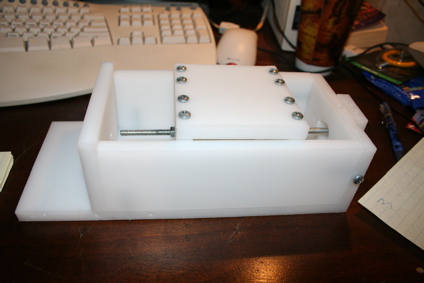

Last time we showed you the completed base, with the first axis. The
screw drive turns easily and there's very little play in the motion of
the table.

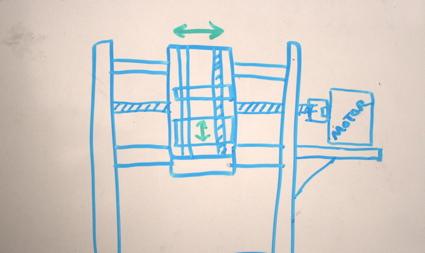

The design of the upper axis is simple, but is the most difficult to
execute. Originally we hoped to use a pair of the small sliders, but
binding was an issue so we redesigned it to use a large printer slider
at the base. Ultimately, the binding was caused by the nut and threaded
rod we were using. Swapping them out solved our problems.

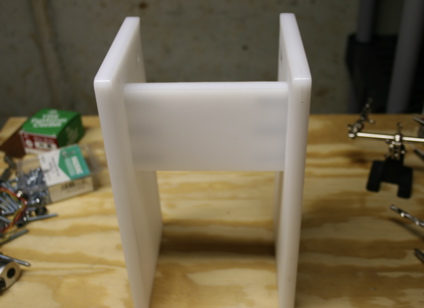

A simple tower constructed of three pieces forms the basis for the rest
of the machine. The tower will be mounted to the outer edges of the
base. This allows greater side to side movement to maximize the usable
area on the table.The center piece of from the same cut as the bottom of
the base. To drill the two sides evenly, we screwed them together and
drill the mounting holes with the drill press. One the first screw was
in, we drilled the rest one at a time.

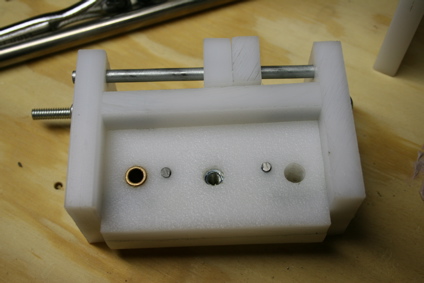

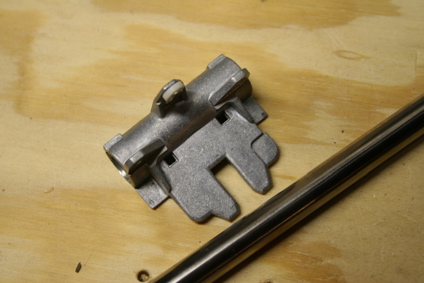

The center slider is the most complex to build. Each piece is visible
here. We used our usual trick of screwing the opposite pieces together
in order to align the holes for the slide and the threaded rod. The
brass slider and long hex nut were pressed into the plastic with our
bench vise. This technique seems to work well, but alignment is
critical!

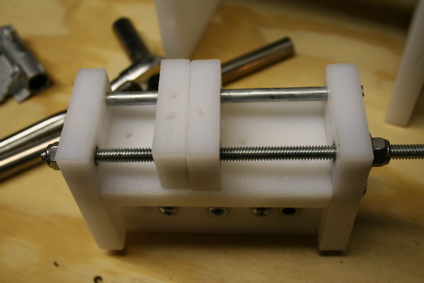

To effectively deal with the minimum space, we had to get tricky. There
just isn't enough room in the carrier to mount bearings for the Z axis.
Instead, we pressed bushings into the plastic with our vise. Then we
added a washer and a lock nut to the threaded rod at the top and bottom
of the carrier. Careful tweaking with a pair of wrenches made for very
little play. Just how long this setup will stay tight is in question so
we'll have to keep an eye on it as we break in the machine.
This slide and carrier were salvaged from an old Okidata printer. We
decided to use it to smooth out the action for the Y axis.

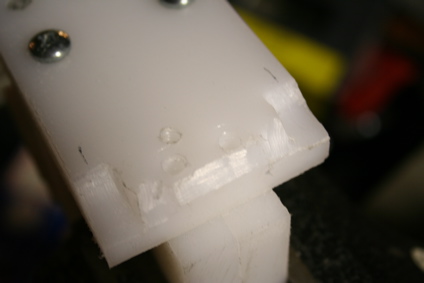

We whipped out the drum sander attachment on our dremel tool and
contoured the plastic on the bottom so we could mount the printer slide
without compromising the integrity of the cast metal.

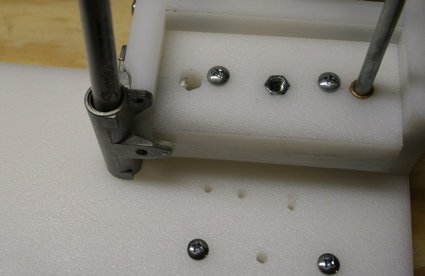

Once the slide was mounted, we marked and drilled the mounting holes for
each axis. Once the slides are set up, we'll use some screws to lock
them in place.
Once things start coming together, they'll get extra frustrating as you
begin aligning the slides and drive screws. I took us a while to narrow
down that the source of binding was the drive screw and nut combination.
We'd overlooked them initially because they worked very, very well in
the other cases.

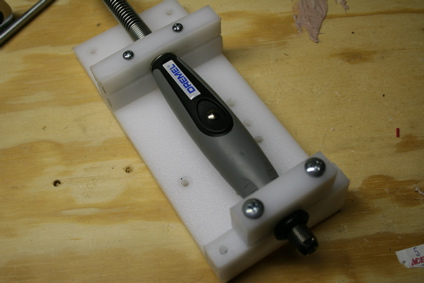

Once each axis has been constructed, we needed a carrier for the
rotating tool. We picked up a flexible dremel shaft and created a simple
mount for it. The flexible shaft will reduce vibration. The dremel
version has the nice button for locking rotation -- far less frustrating
to use than the off-brand tools.
We used a couple of tricks to achieve a nice fit. The strips were cut
first, then screwed together with some space to spare. Then we drilled
the plastic with a starter hole and used the dremel tool to taper and
round out the holes until the fit was perfect.

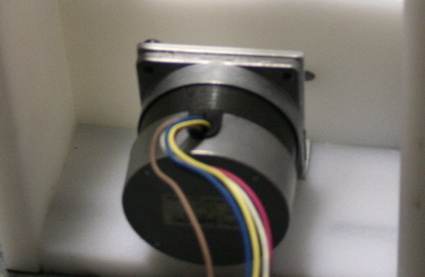

Motor mounts are dependent on the motors you've ended up with. If you're
lucky, you'll salvage some motor mount brackets. Creative mounting can
be achieved by using new or salvaged pulley systems.
Limit switches are very helpful for keeping your machine from self
destructing. A switch is placed at the limit of each axis and wired in
parallel. When the carrier or table contacts one, the circuit is closed

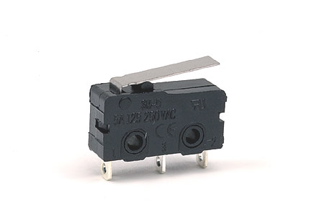

and the controller signals the computer. Lever switches like these
are ideal, or you can salvage some of the exposed contact switches from
printers. The main danger of either switch is fouling caused by debris
from your work project. Covering the switch with a bit of latex glove or
balloon can help prevent problems later on.
Now that you've got
all the bits of information you'll need to build your machine, lets get
into some actual software to make the machine work.
KCam - Probably the easiest
software to set up and configure, KCam is great for testing out your
machine. It ran just fine on our Windows XP laptop. The drawback has to
do with the method that Windows uses to access the parallel port.
Because of this limitation, the machine won't run as smoothly as it
really can.
EMC Linux -
Some dedicated individuals maintain EMC and actually produce a stripped
down, brain dead install of Linux just for running EMC. It doesn't take
much of a machine to run, so it's great for dedicating an old machine
just to run your CNC machine. Add a network card and you can operate and
send jobs to the machine remotely. It's not too bad to install, but
expect to spend some time figuring out the quirks.

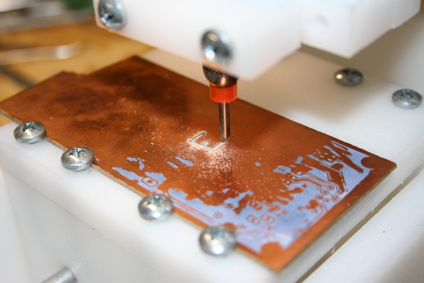

Now, what you've all been waiting for... the machine in action! The bit
is another tungsten carbide bit from
Drill Bit City. (Oh, how we love
them.)
If you've gotten this far, congratulations are an order!
Oh, and then you should already expect to spend some time
troubleshooting your creation. Don't be upset if everything doesn't work
perfectly! (Or if you end up ripping all apart and starting all
over...)
